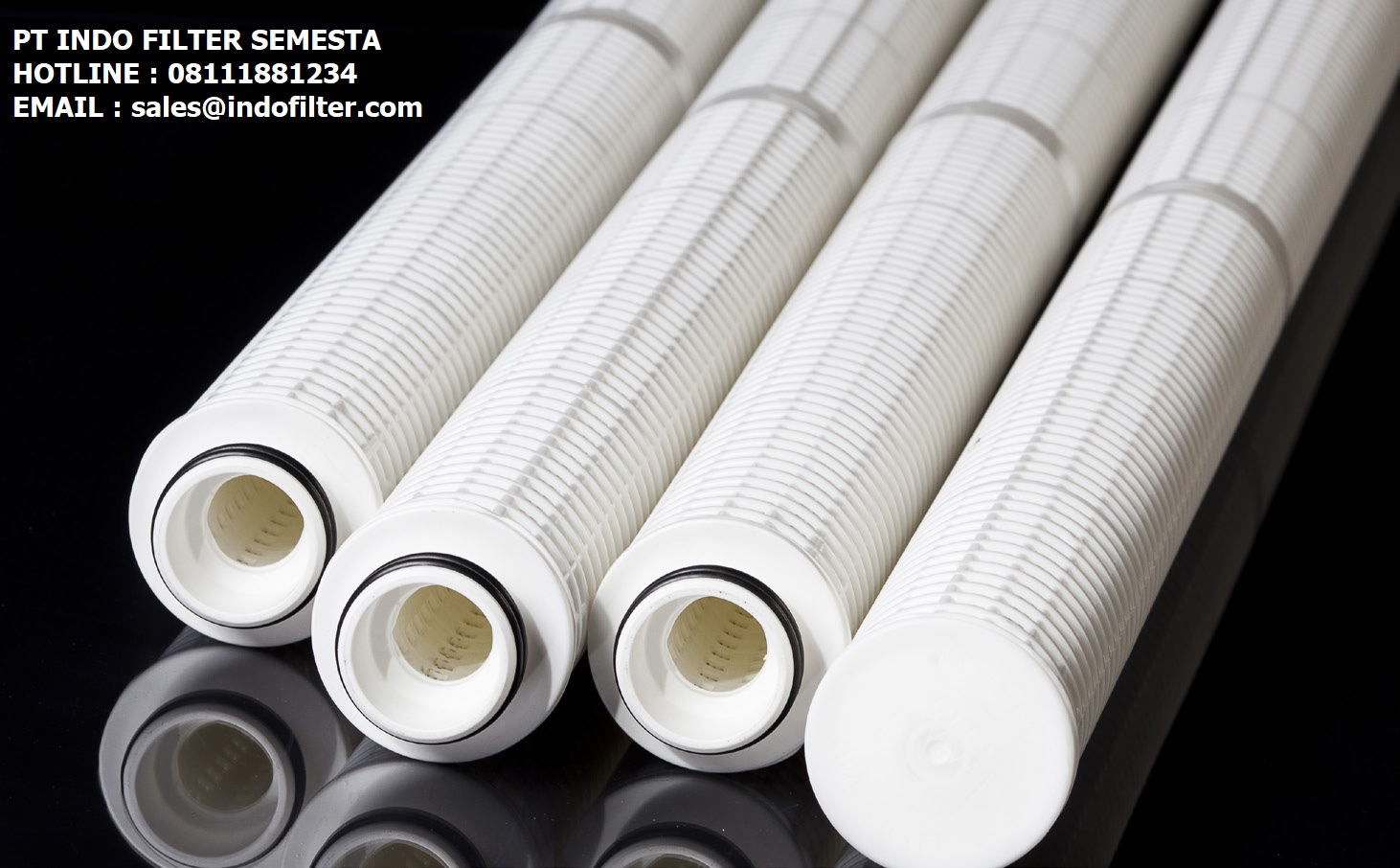

TH5-40-2OF Filter Cartridge
TH5-40-2OF Filter Cartridge
PT. INDO FILTER SEMESTA
Hotline : 0811 188 1234
email : sales@indofilter.com
TH5-40-2OF Filter Cartridge
Materials of Construction
Type of Construction
- 100% thermally welded, pleated glass fibre media supported by all-polypropylene construction
Filter Media
- Glass fibre
Media Support Layers
- Polyester
Media Support Core
- Molded polypropylene
Media Support Cage and Thermally Welded End Caps
- Molded polypropylene
Seal Materials
- Buna-N Others on request
Dimensions
Cartridge Outside Diameter
- 2.5″ (64 mm)
Cartridge Inside Diameter
- 1″ (28 mm)
Cartridge Length
- 40″ (1005 mm)
Connection • Type 222 (code 3)
Filtration Area
- 9 ft2 (1,2 m2) per 40″ cartridge
Filtration Rating
- 1 – 50 micron
Maximum Recommended Operating Conditions Temperature • 176°F (80°C)
Allowable ΔP • 37 psi (2,5 bar)
Flow Rate • 44 bbl/hr (7 m3/hr) per 40″ length @ 68°F (20°C)
End Cap Configuration
222 O-ring SOE / Flat
