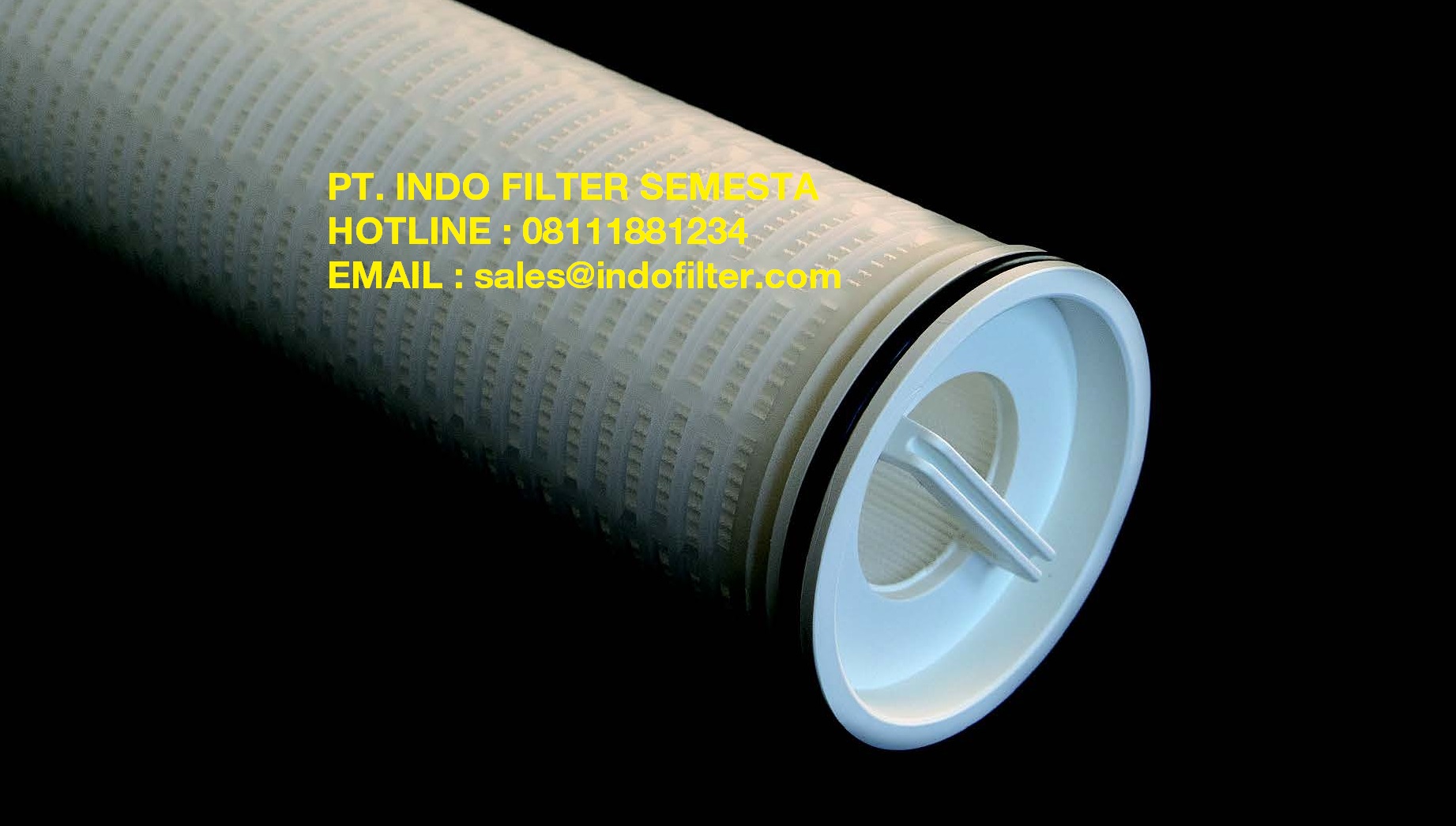

Parker Parmax RCP045-40EPP

Parker Parmax RCP045-40EPP

Hubungi
PT. INDO FILTER SEMESTA
Hotline : 0811188234
email : sales@indofilter.com

Materials of Construction

Media:

RCP – Polypropylene

RMG – Micro fiberglass

Support/Drainage: Polypropylene

Hardware: Polypropylene

O-rings: EPDM, Buna-N, Viton®, silicone

Retention Ratings (99.98%):

0.8, 1, 3, 4.5, 10, 20, 30, 40 and 90 μm

Parker Parmax RCP045-40EPP

Operating Conditions:

Temperature 176°F (80°C) @ 30psid (2.1bar)

Differential Pressure:

70psi (4.8bar) @ 77°F (25°C)

30psi (2.1bar) @ 176°F (80°C)

Parker Parmax RCP045-40EPP

Recommended Operating Conditions:

Flow Rate

175gpm (662 lpm)/20” element

350gpm (1325 lpm)/40” element

500gpm (1892 lpm)/60” element

Change-out Pressure

35psid (2.41bar)

Parker Parmax RCP045-40EPP

Dimensions (nominal):

Outside Diameter: 6” (152mm)

Inside Diameter: 2.9” (74mm)

Hubungi
PT. INDO FILTER SEMESTA
Hotline : 0811188234
email : sales@indofilter.com

Materials of Construction

Media:

RCP – Polypropylene

RMG – Micro fiberglass

Support/Drainage: Polypropylene

Hardware: Polypropylene

O-rings: EPDM, Buna-N, Viton®, silicone

Retention Ratings (99.98%):

0.8, 1, 3, 4.5, 10, 20, 30, 40 and 90 μm

Operating Conditions:

Temperature 176°F (80°C) @ 30psid (2.1bar)

Differential Pressure:

70psi (4.8bar) @ 77°F (25°C)

30psi (2.1bar) @ 176°F (80°C)

Parker Parmax RCP045-40EPP

Recommended Operating Conditions:

Flow Rate

175gpm (662 lpm)/20” element

350gpm (1325 lpm)/40” element

500gpm (1892 lpm)/60” element

Change-out Pressure

35psid (2.41bar)

Dimensions (nominal):

Outside Diameter: 6” (152mm)

Inside Diameter: 2.9” (74mm)
