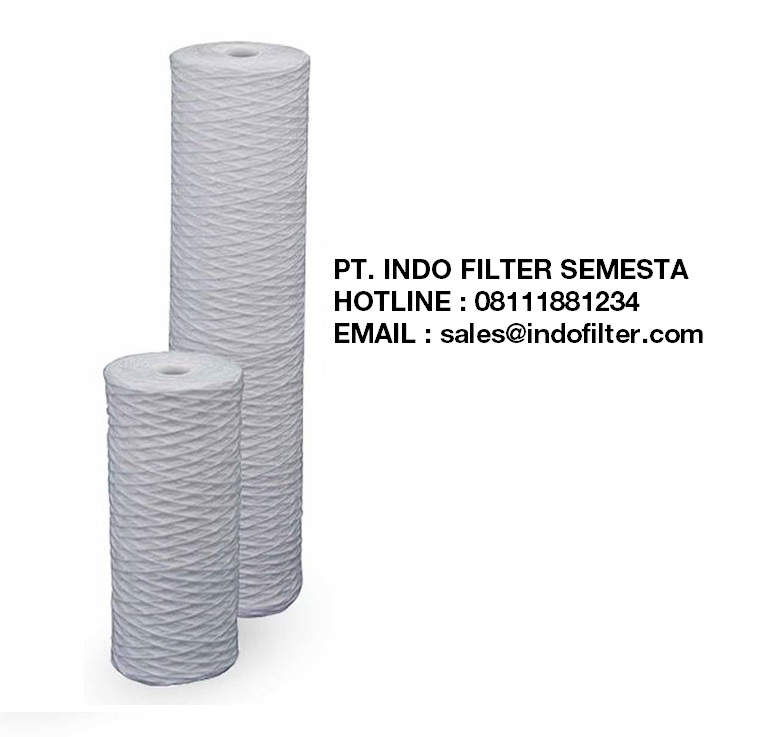

Cartridge Filter Benang Big Blue 20 Inch
Cartridge Filter Benang Big Blue 20 Inch
PT. INDO FILTER SEMESTA
Hotline : 0811 188 1234
email : sales@indofilter.com
String Wound Filter Cartridges are made of polypropylene, polyester, bleached cotton,
String Wound Filter Cartridges are available with Polypropylene core and ss core version.
The superior structure remains integral even under severe operating conditions and is no media migration.
Operation unfiltered fluid passes through depth filter matrix, enables the progressive retention of finer particles, providing high efficiency, high dirt retention, and filter life. Fluid flows from outside to inside through filter media.
Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.
Cartridge Filter Benang Big Blue 20 Inch
Features
- Polypropylene, Polyester, Bleached Cotton
- Excellent flow with low pressure drop
- Excellent flow with low pressure drop
- High strength & pressure resistance
- Free of surfactants, Binders and Adhesives
- High dirt holding capacity
- One piece construction 254 mm, 508 mm, 762 mm, 1016 mm, 1270 mm
Cartridge Filter Benang Big Blue 20 Inch
Technical Specifications
- Sizes : 10” inch , 20” inch , 30” inch , 40” inch , 50” inch Long
- Inner Diameter : 28 mm
- Outer Diameter : 110 mm ( 4.5” )
- 1 Micron , 5 micron
Cartridge Filter Benang Big Blue 20 Inch
Configuration
Double Open Type DOE
Cartridge Filter Benang Big Blue 20 Inch
Construction
String Wound Filter Cartridges are made from Polypropylene, Polyester & Bleached Cotton
Applications
- Pharmaceuticals: base product clarifications, membrane pre filter
- Fine chemicals: solvents, process streams, water purification
- Food & beverages: bottled water, flavors, polishing lines
- Petrochemicals: water flood, completion fluids, amines
- Water treatment: membrane protection, resin trap
- Cosmetics: alcohols, essential oils , water lines
- Electronics: electroplating, etching, image development
- Metal finishing: plating solution, paint and resin products, wash
- Magnetic coating: dispersions, coating lines, solvents
