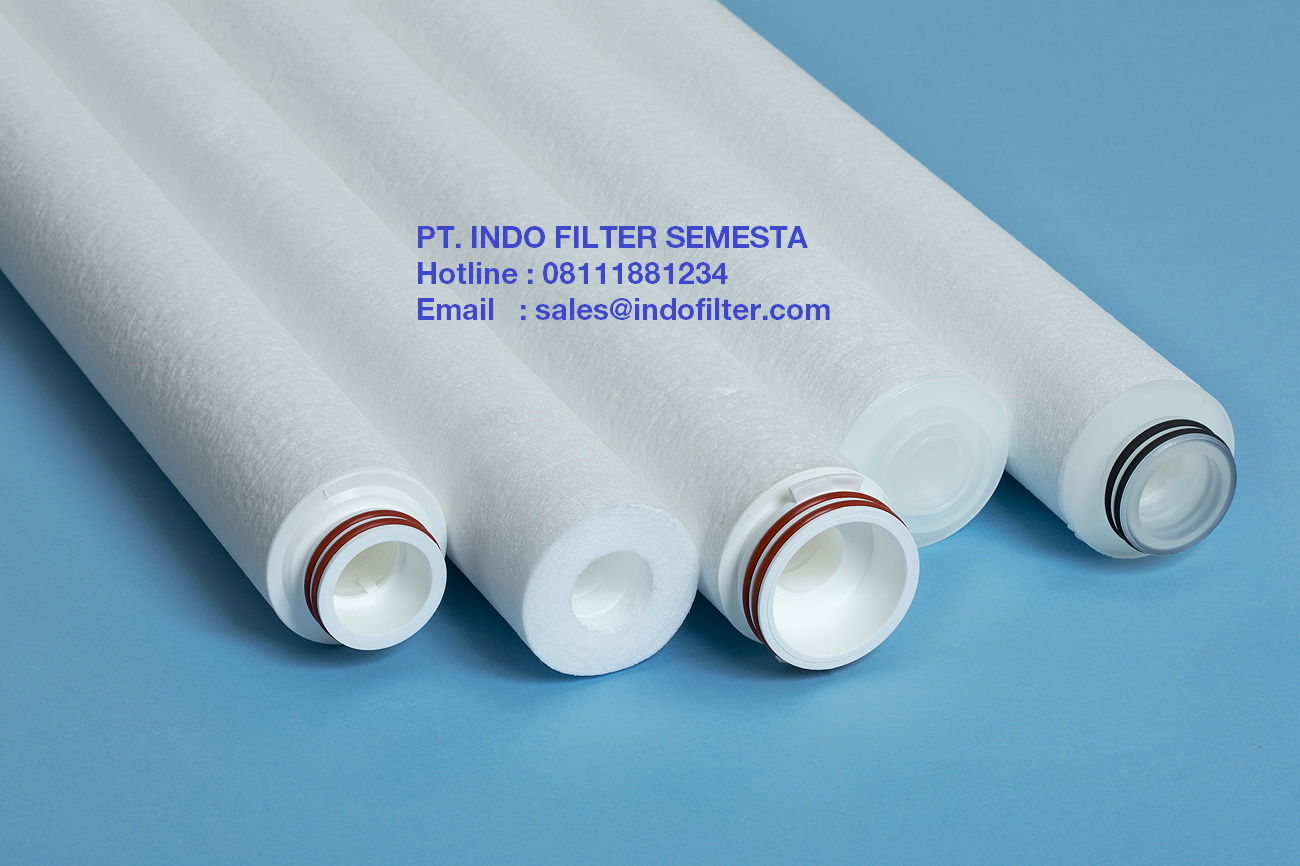

Cartridge Filter 03 Micron

Cartridge Filter 03 micron

• Sizes : 10” inch , 20” inch , 30” inch , 40” inch , 50” inch Long
• Inner Diameter : 28 mm
• Outer Diameter : 63 mm
• 1 Micron, 3 Micron, 5 Micron, 10 Micron, 20 Micron up to 100 Micron
Configuration
• Double Open Type ( DOE Type)
• SOE 222 Oring Fin End
• SOE 226 Oring Fin End
• SOE 222 Flat End

cartridge filter 03 micron

Cartridge Filter SWRO Spun Bonded Filter Cartridges are made of 100% polypropylene fibers. These fibers have been carefully spun together to form a true gradient density from outer to inner surface. Spun Bonded Filter Cartridges are available with core and without core version. The superior structure remains integral even under severe operating conditions and is no media migration. Polypropylene fibers are blown continuous on central molded core, without the need for binders, resins or lubricants. Operation unfiltered fluid passes through depth filter matrix, enables the progressive retention of finer particles, providing high efficiency, high dirt retention, and filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.

cartridge filter 03 micron

Features
• 100 % Polypropylene for wide chemical compatibility
• Excellent flow with low pressure drop
• Excellent flow with low pressure drop
• High strength & pressure resistance
• Nominal & absolute filtration rating
• Free of surfactants, Binders and Adhesives
• High dirt holding capacity
• One piece construction 254 mm, 508 mm, 762 mm, 1016 mm, 1270 mm

cartridge filter 03 micron

Construction
• Spun bonded filter cartridges are made up of 100% Polypropylene

Applications
• Pharmaceuticals: base product clarifications, membrane pre filter
• Fine chemicals: solvents, process streams, water purification
• Food & beverages: bottled water, flavors, polishing lines
• Petrochemicals: water flood, completion fluids, amines
• Water treatment: membrane protection, resin trap
• Cosmetics: alcohols, essential oils , water lines
• Electronics: electroplating, etching, image development
• Metal finishing: plating solution, paint and resin products, wash
• Magnetic coating: dispersions, coating lines, solvents
